English
Scope of application： Products with heavy weight and slight stickiness such as chow mein, self-heating rice, large chunks of meat products, as well as materials that cannot be automatically metered
The body is waterproof and easy to clean;Mechanical transmission;The pneumatic components adopt the Festol brand imported from Germany,with stable quality and long service life.
Functions and Features:
-The powder material measurement and packaging system consists of a rotary packaging machine,a screw gauge,and a screw elevator.
-Perfect quality ensures high-speed and stable production.
-Using high-quality accessories to maintain the machine's long-lasting stability, equipped with advanced vacuum cleaning systems.
-Innovatively solve various packaging problems at reasonable costs.
-Low packaging material loss,this machine uses pre made bags with perfect patterns, good sealing quality,and enhances product grade.
Technical Parameters:
| Model | MW10-230S High-Speed Automatic Pre-made Pouch Packaging Machine |
| Packaging materials | Self standing bags,handbags,zippered bags,four sided sealing bags,three sided sealing bags,paper bags and other composite bags |
| Bag size | (W):80-240mm(L):150-380mm |
| Fil range | 10-2500g (Depending on product type) |
| Packaging speed | 25-50 Package/min |
| External dimensions | 2200x1500×2200mm(LxWxH) |
| Machine weight | 1550KG |
| Compressed air consumption | ≥0.6m³/min (Compressed air shall be supplied by the user) |

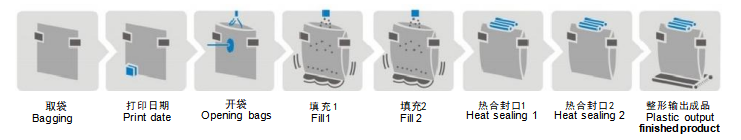

Main standard components:
| 1.Bag loading system | 5.Heat sealing system |
| 2.Zipper opening system | 6.PLC control system |
| 3.Bag opening device | 7.Output system |
| 4.Material unloading system |
Bean products,meat products,egg products,pickled vegetables and other leisure foods.
Scope of application: Block materials: dried tofu, fish snacks, eggs, candies, red dates, oatmeal, chocolate, biscuits, peanuts, green soybeans, rock sugar, pistachios, daily necessities, puffed food, etc. Granular materials: crystalline monosodium glutamate, granular medicines, capsules, seeds, chemical raw materials, granulated sugar, chicken essence, melon seeds, nuts, pesticides, fertilizers, feeds
Based on local services for leading food supply chains such as Shuanghui and Weilong, it also radiates to thousands of small and medium-sized food processing factories across the country. The export business has been steadily expanded, with equipment sold to overseas markets such as Southeast Asia, Central Asia, the Middle East, and South America, meeting the automation upgrade needs of cross-border food production enterprises.
