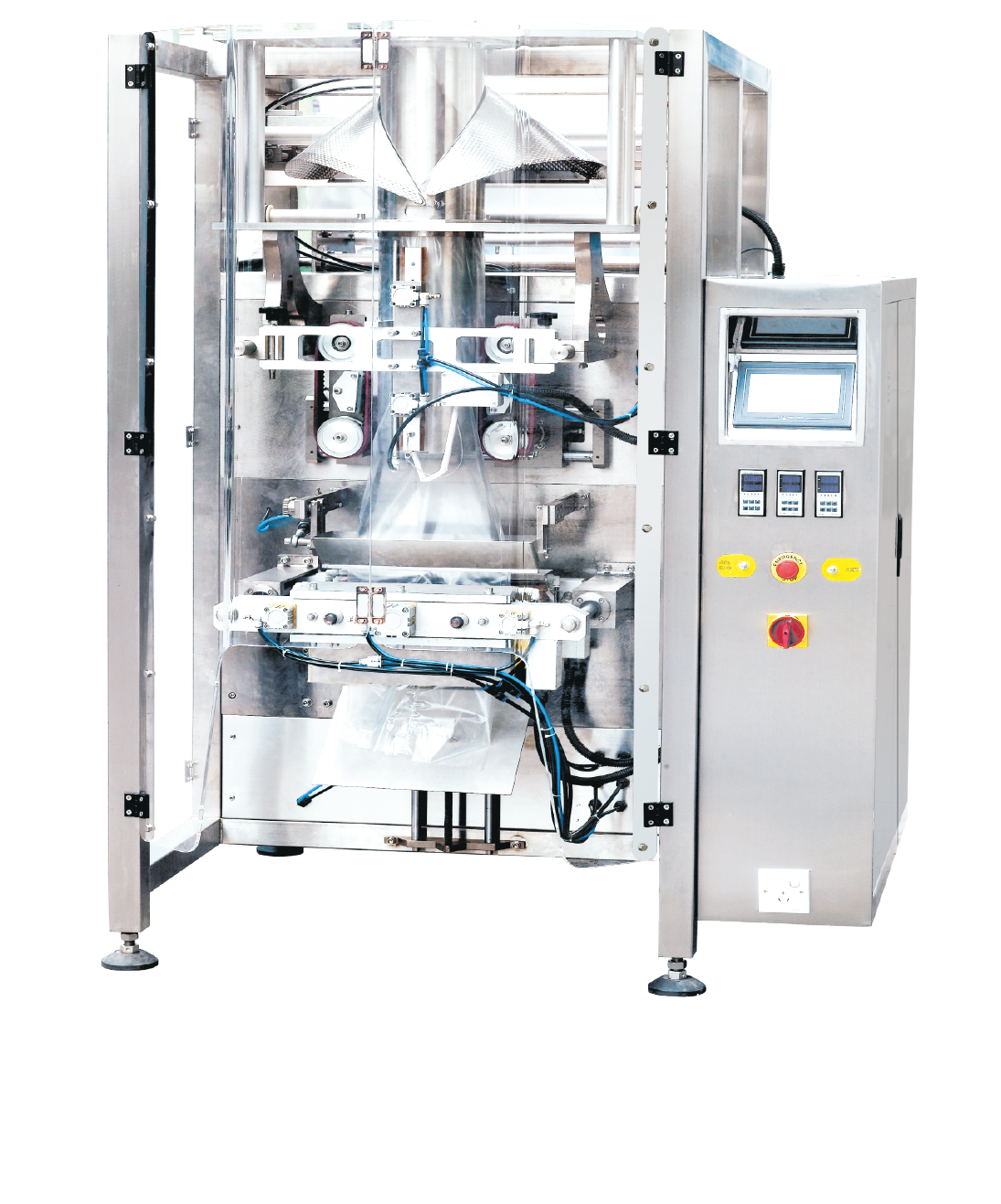

1、The structural feature
1、PLC control with touch panel-step by step instruction.
2、Equipped with servo winding system,pneumaticcontrol system.
3、The maximize to improve the whole machine precision,reliability and stability.
4、Use intellectual temperature controller,the hightemperature control to ensure neat sealing.
5、The perfect automatic alarm safety protection,littlewaste.the machine will automatically complete allpackaging processes from feeding,measuring,filling,Printing,finished bag.
II、Scope of application
The machine can combine with weighing system ofmulti-head weigher device,measuring cups deviceaugerfiller device,manual feeding conveyor device,and suitableto use in packing many kinds material which the shape ispowder,liquid,granule,bar,roll,slice.such as :rice sugar,chocolate,nuts,potato chips,shrimp,dumplings,candy,flour,milk powder,etc.
| Aircraft model | 720 | 720PE |
|---|---|---|
| Packaging speed | 10-50 bags/min | 5-20 bags/min |
| Bag-size | (WY10-350mm (L)100-420mm二次拉膜600mm | (W)120-350mm(L)120-420mmSecondary membrane capacity600mm |
| Bag making mode | Pillow-type bag、standing bag、punch device | Pillow-type bag |
| Range of measuring | Max 4000ml | First membrane capacity:7800mlSecondary membrane capacity:11500ml |
| The maxwidth of packing film | 720mm | 720mm |
| Film material | POPP/CPP,POPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/AL/PE,NY/PE,PET/PET | |
| Main power/voltage | 4kW/AC 220V50-60HZ | 3.5kW/AC 220V 50/60HZ |
| Dimension | (L)1780×(W)1350x(H)2000mm | (L)1940×(W)1220×(H)1900mm |
| The weight of switchboard | 800Kg | 650Kg |
Based on local services for leading food supply chains such as Shuanghui and Weilong, it also radiates to thousands of small and medium-sized food processing factories across the country. The export business has been steadily expanded, with equipment sold to overseas markets such as Southeast Asia, Central Asia, the Middle East, and South America, meeting the automation upgrade needs of cross-border food production enterprises.
