Simple operation, one-button start, stable, efficient, reliable, and durable;
Supports multiple palletizing recipes, easy and intuitive operation;
Small footprint, easily movable;
High automation, low power consumption, reduces labo

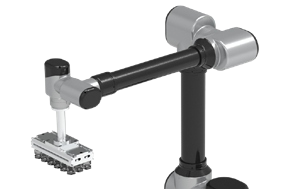

| Robot Load Capacity | Up to 30 kg with suction tool |
| Pallet Placement Form | Left and right sides(optionalautomatic pallet feeder) |
| Plletizing Height | depends on the box pallet |
| Total Power | 4kw |
| Palletizing Speed | 5-6n/min |
| Air Pressure Supply | 0.5-0.7Mpa; Air consumption 200L/min |
| Net Weight | ≈600kg |
| Machine Dimensions(including lift) | L3330×W1700×H3100 mm |
| Power Supply Type | AC380V,50Hz±5%,24V |
| Maximum Pallet Size | L1200×W1200×H150 mm |
Based on local services for leading food supply chains such as Shuanghui and Weilong, it also radiates to thousands of small and medium-sized food processing factories across the country. The export business has been steadily expanded, with equipment sold to overseas markets such as Southeast Asia, Central Asia, the Middle East, and South America, meeting the automation upgrade needs of cross-border food production enterprises.
